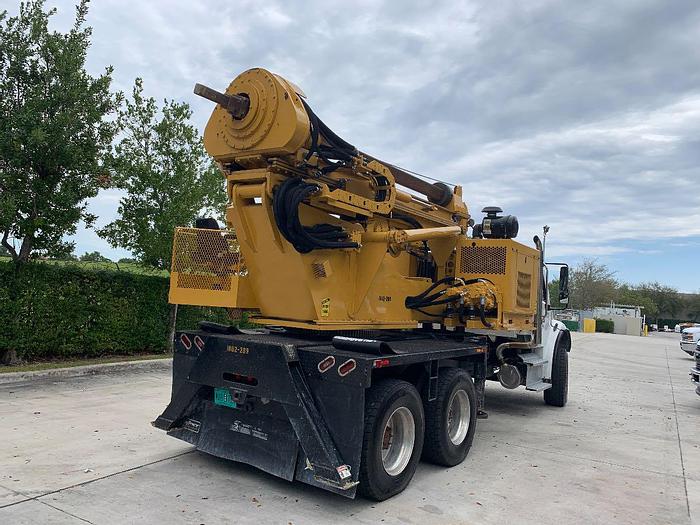

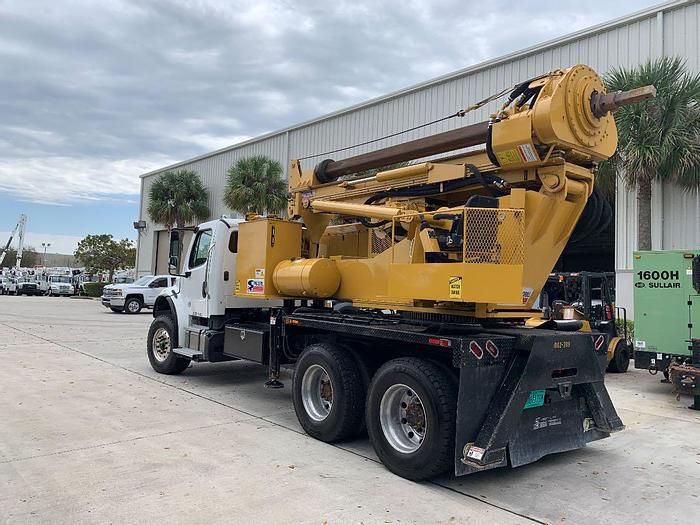

2018 Spiradrill LHD – 35

2018 Spiradrill LHD – 35 Mounted on a 2018 Freightliner M2106 6×4 automatic The LHD is a completely hydraulic unit built to deliver maximum efficiency and power. Made to drill up to 50 feet, the unique design is constructed to allow the mast, hoist, Kelly and rotary gear box to feed the drilling tool simultaneously. The mast and Kelly can travel up to 48″ providing positive crowd all the way to depth. The LHD-50 can also be mounted on a 6×6 Truck. TECHNICAL SPECIFICATIONS Maximum Pile Depth 50 feet 15.24 m Maximum Pile Diameter 72 inches 1.82 m Maximum Torque 30,000 ft./lbs. 40.67 kNm Maximum rpm (low) 22 rpm 22 rpm Maximum rpm (mid) 56 rpm 56 rpm Spin off Speed 140 rpm 140 rpm Main Winch 12,000 lbs. 53.33 kN Service Winch 8,000 lbs. 35.56 kN Mast Travel 48 inches 1.22 m Fuel Tank 50 gallons 189 liters Kelly Bar 5″ x 7″ or 4 1/2″ x 7 1/4″ round
