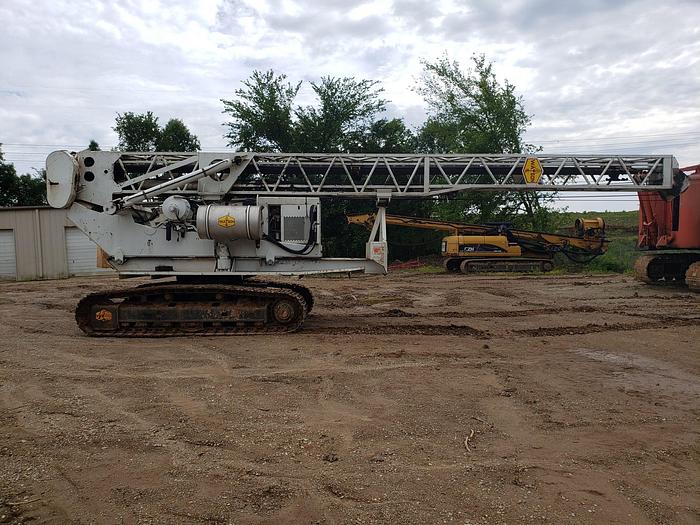

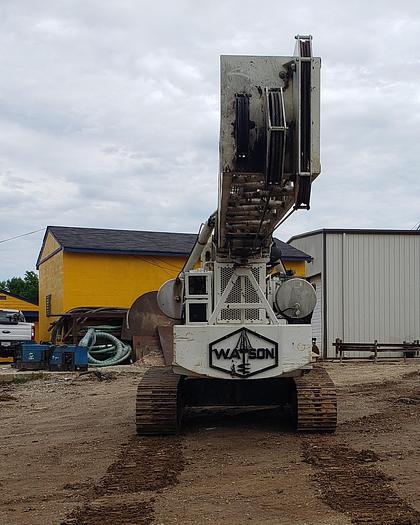

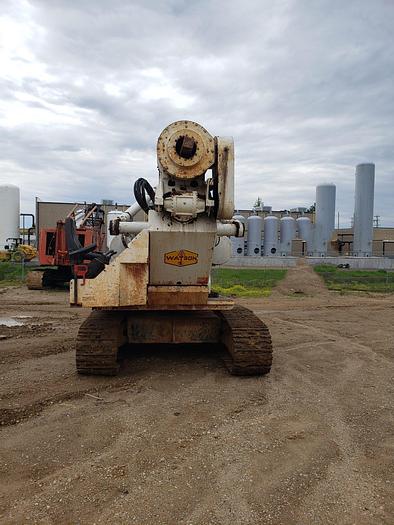

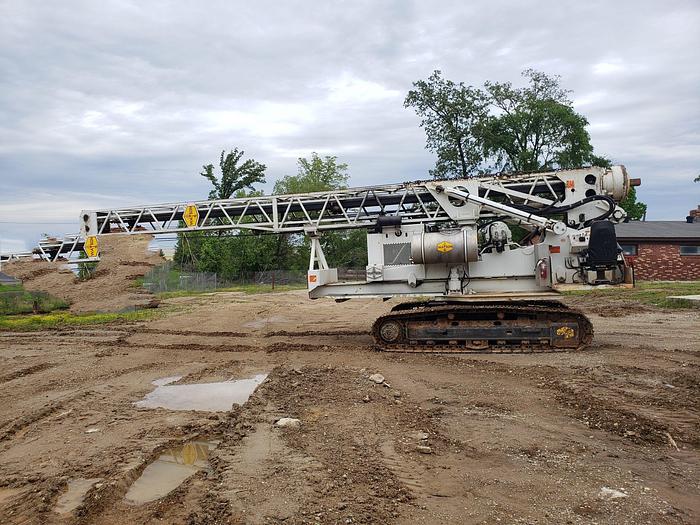

2014 Watson 2500CM

2014 Watson 2500CM 4,000 Hours 60 foot drill depth 2500 Standard Features Rotary (Mechanical) Single reduction with heavy duty spiral bevel ring gear and pinion. Roller type kelly drive. Mast Lattice type structure. Mast is elevated with two independently controlled hydraulic cylinders that allow positioning 10 degrees past vertical and 10 degrees each side. Kelly Telescoping multi-element. Square friction or round locking. Kelly Winch “Controlled freefall” or straight power down when lowering and 2 speed 25,000 lb raise. Service Winch 12,000 lb. power-up/power-down. Rotating Frame Rotation provided by dual swing rotation motors and planetary drives with integral braking system. Enables 360° swing on crawler rigs. On crawler mount increases drill radius for maximum drill radius of 156”(13’) and 144”(12’) respectively Crawler Mount (CM) 24” wide triple grouser pads on 14 ft long expandable track frames on custom carbody. 10 ft width for transport to 12 ft for increased stability when drilling. Standard weight of 64,000 lbs applies 7.94 psi on track pads in standard configuration. Two speed travel of independently controlled tracks.
