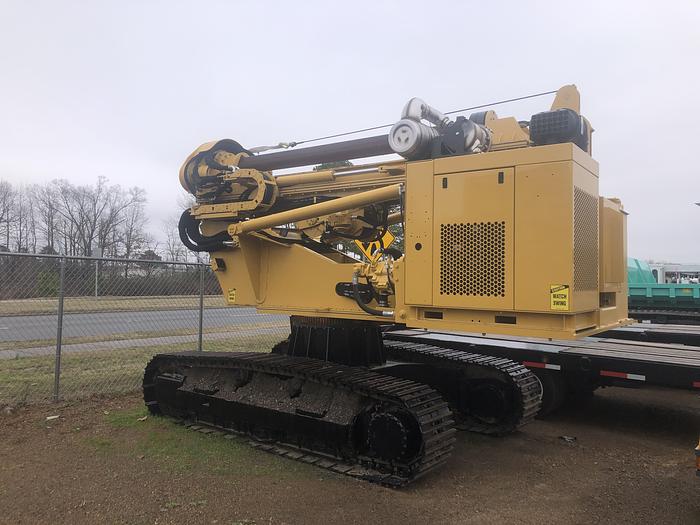

2019 Spiradrill LHD - 35 SM Crawler Mounted

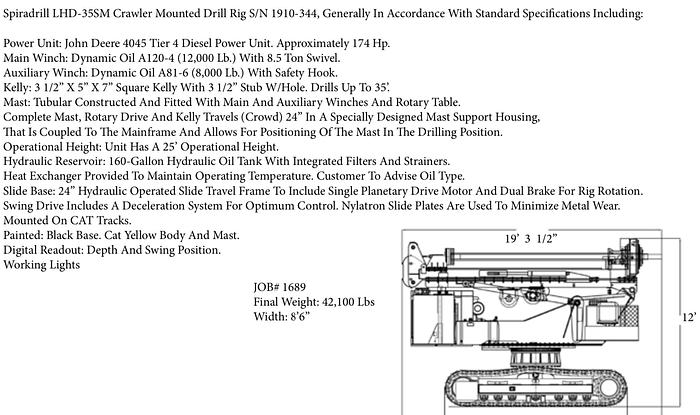

2019 Spiradrill LHD-35

 Unit: John Deere 4045 Tier 4 Diesel Power Unit. Approximately 174 Hp.

Main Winch: Dynamic Oil A120-4 (12,000 Lb.) With 8.5 Ton Swivel.

Auxiliary Winch: Dynamic Oil A81-6 (8,000 Lb.) With Safety Hook.

Kelly: 3 1/2" X 5" X 7" Square Kelly With 3 1/2" Stub W/Hole. Drills Up To 35.

Mast: Tubular Constructed And Fitted With Main And Auxiliary Winches And Rotary Table.

Complete Mast, Rotary Drive And Kelly Travels (Crowd) 24" In A Specially Designed Mast Support Housing, That Is Coupled To The Mainframe And Allows For Positioning Of The Mast In The Drilling Position.

Operational Height: Unit Has A 25' Operational Height.

Hydraulic Reservoir: 160-Gallon Hydraulic Oil Tank With Integrated Filters And Strainers.

Heat Exchanger Provided To Maintain Operating Temperature. Customer To Advise Oil Type.

Slide Base: 24" Hydraulic Operated Slide Travel Frame To Include Single Planetary Drive Motor And Dual Brake For Rig Rotation.

Swing Drive Includes A Deceleration System For Optimum Control. Nylatron Slide Plates Are Used To Minimize Metal Wear.

Mounted On CAT Tracks.

Painted: Black Base. Cat Yellow Body And Mast.
