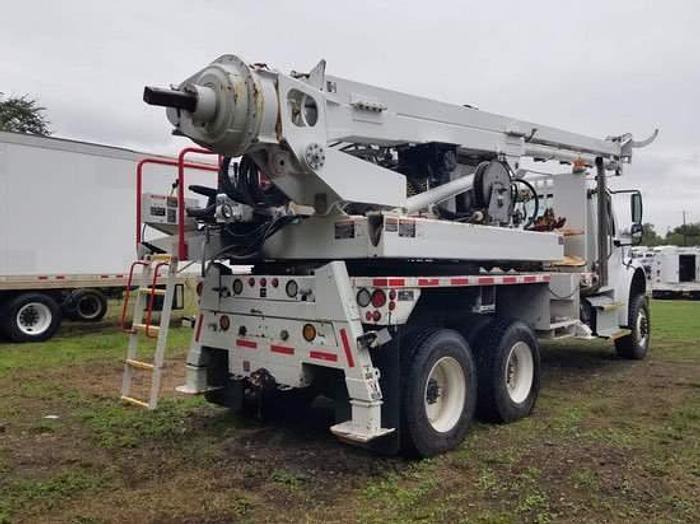

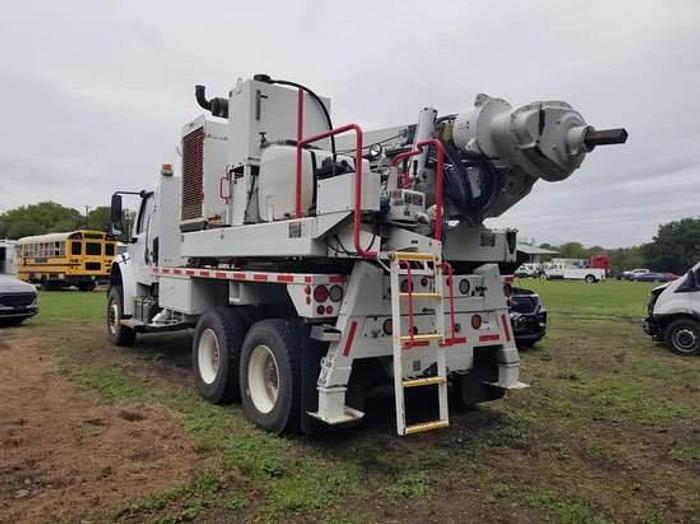

Altec HD35A-22 Pressure Digger

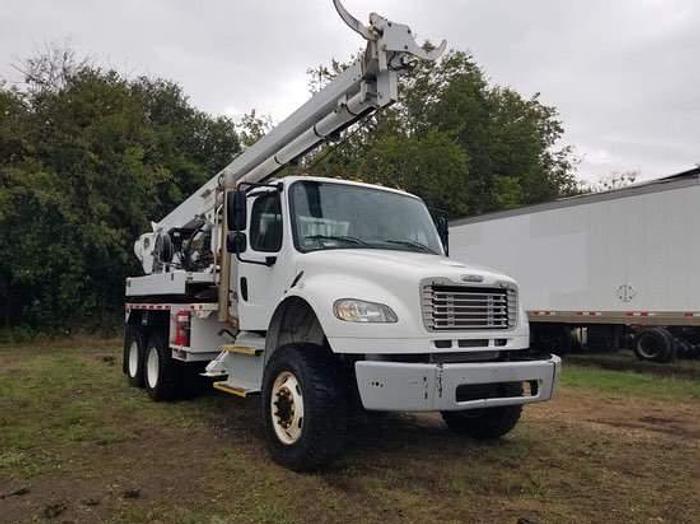

ALTEC HD35A-22 Pressure Digger on 2014 Freightliner

Altec Hours: 211

General Specifications:Nominal Digging Depth:22 ft (6.7 m)

Lowest Overall Working Height

Mast/Pole-Setter Retracted:32.6 ft (9.9 m)

Maximum Sheave Height

Fixed Length Pole-Setter:31.8 ft (9.7 m)

Maximum Sheave Height

Telescopic Pole-Setter:39.8 ft (12.1 m)

• Non-Insulating Pressure Digger
• Continuous Digging Capacity to 72 in (1830 mm) Dia. Hole
• High Performance Inertia Drive System
• Ergonomic Work Station
• Cummins 160 hp Diesel Engine
• Drive Torque to 30,000 ft-lb (40,675 N.m)
• Variable Speed Drive System to 160 RPM
• 3.5 in (90 mm) Square Kelly Bar for Increased Resistance to Bending
• Mast Leveling, 20° to Left, Right and Rear
• Set-Up Mast Without Paying-Out Winch Line
• 240° Rotation
• Main Digger Frame Extends and Retracts 36 in (914 mm)
• Subbase Mounting for 120 in (3048 mm) Chassis
• Ram Cylinder Extend Force to 35,640 lb (16,167 kg)
• Tool Storage and Drop Pocket
• 50 gal (189.3 L) Fuel Tank Capacity

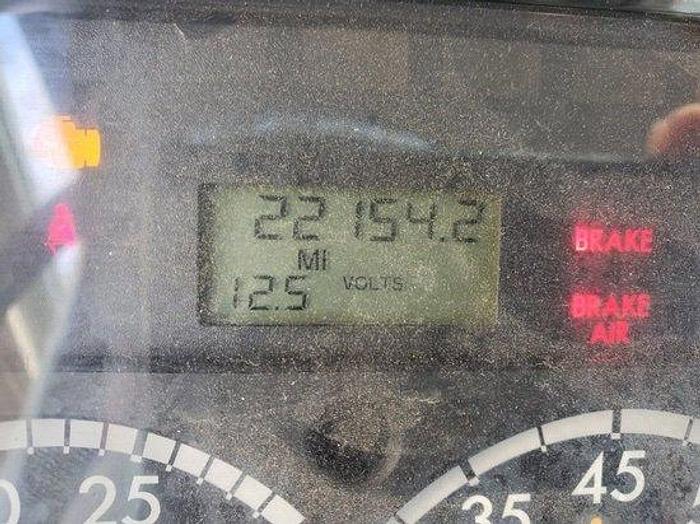

22k miles on Chassis-

Cummins ISL, 300hp, 3500RDS Allison Automatic, Spring Suspension, 54000GVW, 198 in WB, 5.29 Ratio
