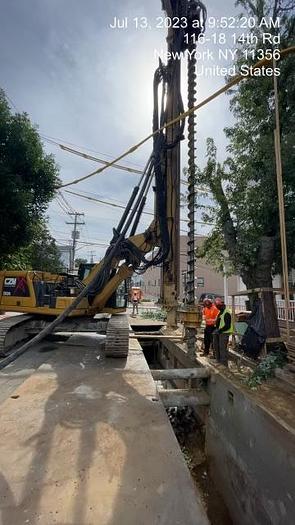

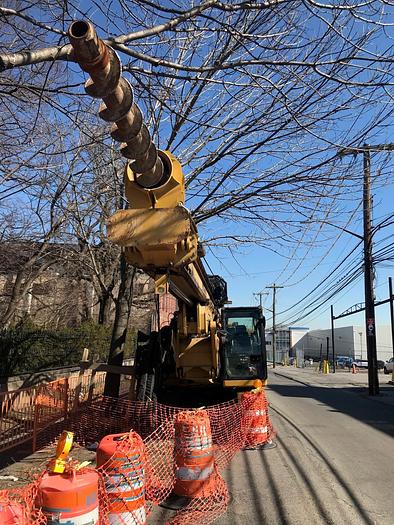

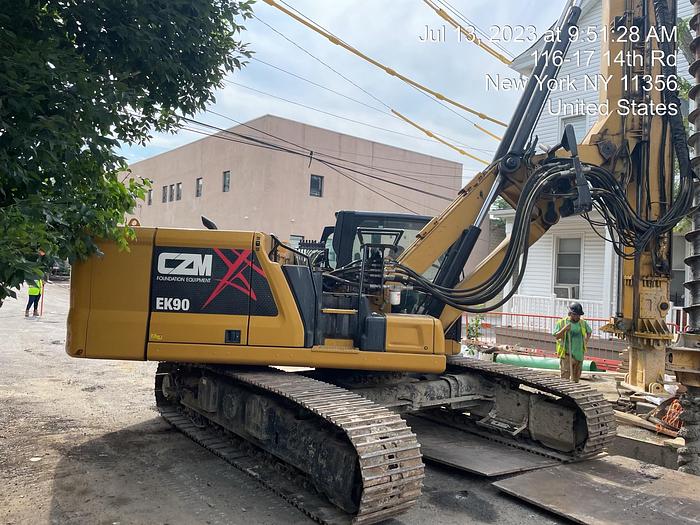

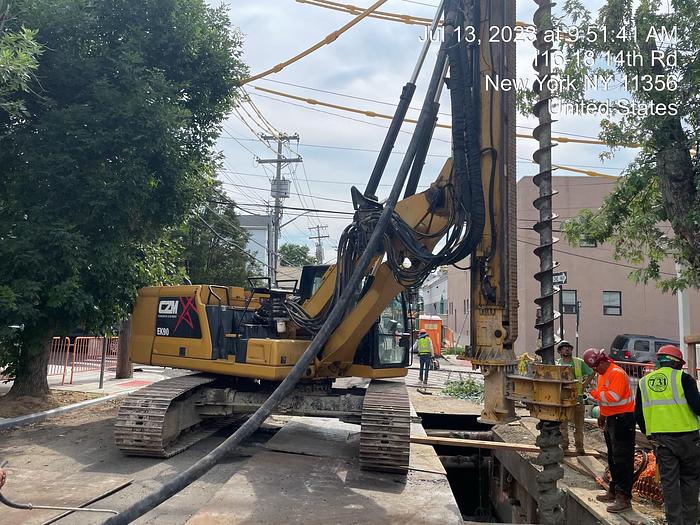

2020 CZM EK-90 CFA

CZM EK-90 CFA

Price drop $100,000

Hours: 900

TECHNICAL SPECIFICATIONS

Standard Chassis:CAT 323 Next Gen Installed

Power:172 hp128 kWMaximum Torque:34,000 ft.lbs4,700 kg.mMaximum Diameter:24 in600 mm

Maximum Depth (20 in Diameter):60 ft18,200 mm

Maximum Depth (24 in Diameter):45 ft13,700 mm

Crowd Extraction Force:44,000 lbf20,000 kgfOperation/

Transport Weight:72,500 lbf33,000 kg

f

About The EK90 CFA

The EK90 is a multipurpose model designed to be a multifunctional drill rig mounted on a CAT 323 Next Gen excavator base. This versatile machine works for a variety of applications including micropile, jet grouting, segmented flight auger and tiebacks. Its unique design allows for simple conversion between these applications. It is equipped with radio remote control to ensure fast and safe operation. Operation can be executed either from the remote control or the cab. The parallelogram, the mast vertical slide, and the rotary shift slide are useful for multiple processes of drilling operations.

Base:

• The new Cat 323 Next Gen powered by a fuel efficient Tier 4 Final C7.1 ACERT engine.
• Equipped with CAT Vision Link that allows management to monitor machine operations and maintenance data online

Undercarriage:

• Caterpillar variable undercarriage VH4830/3675/600. Reinforced frame H style variable undercarriage.

Mast:

• Reinforced mast, with high resistance steel Weldox 700.
• Mast Slide with 11ft travel.

Crowd / Pull Back Winch:

• High Resistance Tinken 4 link chain.
• 2 gears allows for both high speed and high pulling force.
• Automatic gear shifting, for seamless operation, high production.
• Hydraulic and mechanic brake.
• Hydraulic measurement of pulling force displayed in the cab

Clamps:

• Double clamps available in 2 sizes, 18in and 24in.

Rotary:

• Robust design, with 2 tapered roller bearings on top and bottom, robust pinions and main gear.
• 4 group of High Pressure, 2 speed, Orbital Motors Motors high torque and long life.
• Anti-cavitation, anti-shock for longer hydraulic motor life.
• 4 operation speeds. For high torque and high speeds.
• Automatic gear shifting, for seamless operation, high production.
• Spring shock absorver and Air swivel.
• Rotary side shift.
• Hydraulic measurement of torque displayed in the cabin for the operator.

Cab:

• AM/FM Radio, Air conditioning/Heating.
• ROPS cab & Top protection.
• LCD monitor for Engine and Hydraulics computer, with diagnostic system.
• CZM Canbus System for Drilling Monitoring with auto functions and remote control.
