2022 Watson 1100TM

2022 Watson 1100TM

DRILL DEPTH:

37' drill depth

MAST:

Drill unit overall height 24' 10" - in drill position

Box type structure

Mast is elevated with two hydraulic cylinders allowing positioning 10° past vertical and 10° on each side

POWER UNIT:

John Deere diesel, 140 hp (Full Tier 4)

ROTARY DRIVE:

52,000ft/lbs. (43,000 ft/lbs. torque output) Variable Compensated Hydrostatic-Dual Motor Rotary

130 RPM SpinOff

Recommended Tool Diameter: 24-60”

KELLY:

4-bar square kelly (10"/8"/6"/4.25") x 37' drill depth + tool

Telescoping, multi-element

4” Square Tooling Stub

CROWD:

21,700 lbs. with Pressure Adjustment

KELLY WINCH:

18,000 lb. line pull, single layer, grooved drum, controlled free fall

160 ft/min Kelly Winch Speed – 2 speed

5/8” dia. Winch Cable

CONTROL FUNCTIONS:

Hydraulic valving and controls to operate various functions

ROTATING & SLIDE FRAME:

Rotation provided by a hydraulic motor and planetary with integral braking system

42” slide frame increases maximum drill radius

OUTRIGGERS:

Out/down cab end, stabilizers on drill end, operator controlled, powered by upper unit

OTHER:

Sun / Rain Umbrella

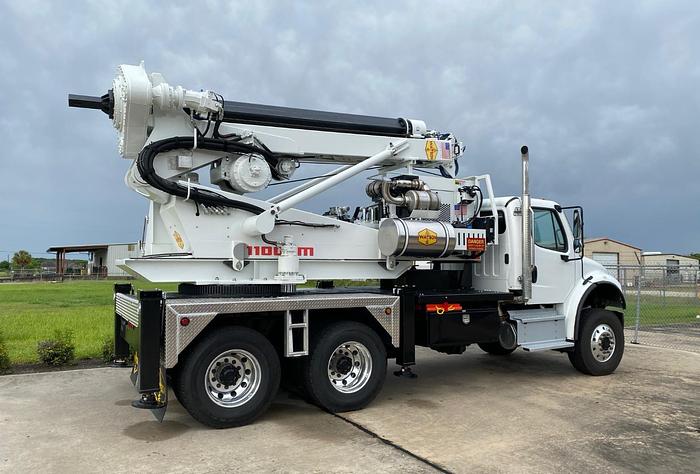

Watson 1100TM 6x6 Truck Mounted Drill Unit

DRILL UNIT OPTIONS:

Service Winch: 4,500 lb. Line Pull (power up/down) with 1/2" dia. Winch Cable

Electronic Depth Indicator

Electronic Level Indicator

(2) 18 x 48" Toolboxes

Deck Extension, required for tool box

Outrigger pads and stowage compartments

Water tank in deck extension (with pump and foot valve)

Work lights (5 total)

CHASSIS:

Freightliner M2-106 6x6 truck, 350HP Cummins Engine and Allison Transmission

ESTIMATED TRAVEL DIMENSIONS:

Weight: 40,540 lbs.

Height: 13'3"Length: 27'5"
