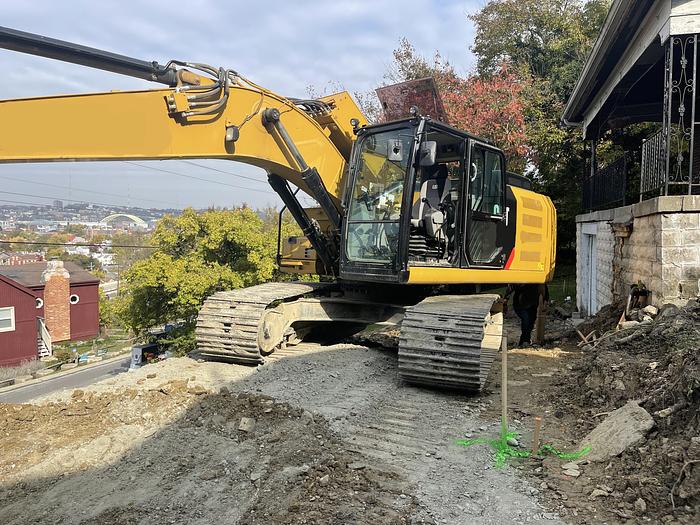

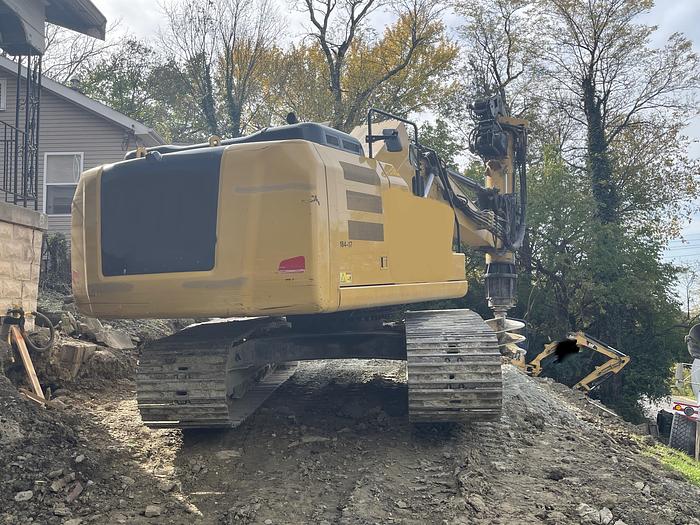

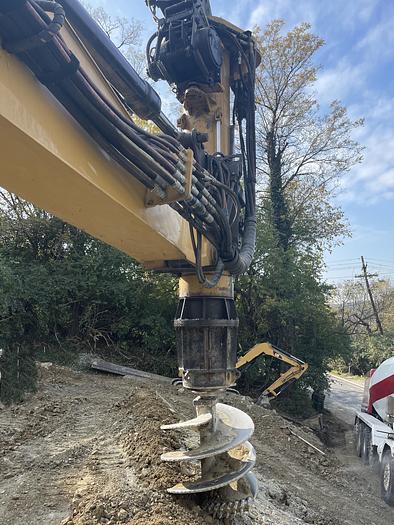

2019 Bay Shore Systems DH-20

2019 Bay Shore LoDrill DH-20

TORQUE - 21,500 FT.LBS [29.15 kNm]

DRILLING DEPTH - 32 FT [9.75 m]

BASE MACHINE -CAT 323 FL

DRILL SPEED - 0 TO 60 RPM

SPIN OFF - 100 RPM

CROWD STROKE - 24 IN [0.61 m]

CROWD FORCE - 16,500 LBS [7,480 kg]

KELLY WINCH - 12,000 LBS [5,440 kg] (FIRST LAYER,

RAPID REVERSE OPTIONAL)

SERVICE WINCH - 5,000 LBS [2,260 kg] (FIRST LAYER,

OPTIONAL)

SIDE TILT - 13 DEG. LEFT/RIGHT

KELLY BARSET - 5 ELEMENT RLK (5" INNER)

ATTACHMENT WEIGHT - APPROX. 5,500 LBS [2,490 kg]

BARSET WEIGHT -

- APPROX. 5,500 LBS [2490 kg]

TRANSPORT WEIGHT - APPROX. 65,000 LBS [29,500 kg]
